The XP20 test benches offer totally new possibilities in travel simulation to you as rail operators, system integrators and customer service employees.
The XP20D drive units for axle-mounted generators and pick-up sensors are an integral part of the simulation environment for system testing of speed sensors within train protection. The compact housing facilitates testing directly on the vehicle.
DEUTA’s approach to sensor simulation is a holistic one: the XP20 range consists of test benches for axle-mounted generators, pick-up and Doppler radar sensors of which up to 9 devices can be networked and centrally controlled by you.

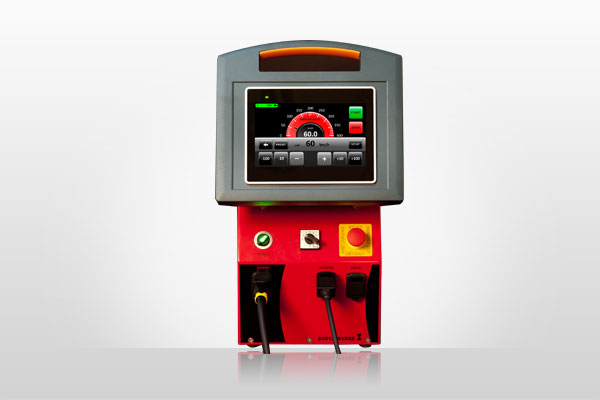

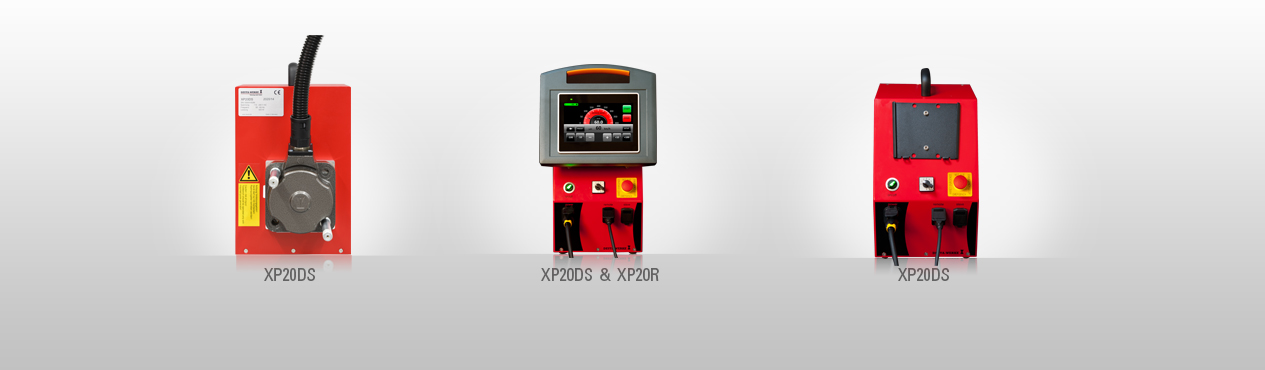

The XP20DR set is a stand-alone solution with a mobile operating terminal, 5 m data cable as well as software with driving profile modus. The XP20DS variant serves as a remotely controlled service device for testing on the vehicle. It is supplied without its own operation terminal. Activation of the service device XP20DS is effected via the mobile operation terminal XP20R, the software emulation of the XP20 operator interface or indirectly in synchronous operation. With the operation terminal up to nine XP20 test benches are simultaneously activated. Variable settings, for example, wheel diameter, are set separately for each driver.
